Tiga Lapisan Mesin Stretch Wrap
Tiga Lapisan Mesin Stretch Wrap
Tiga Lapisan Mesin Stretch Wrap

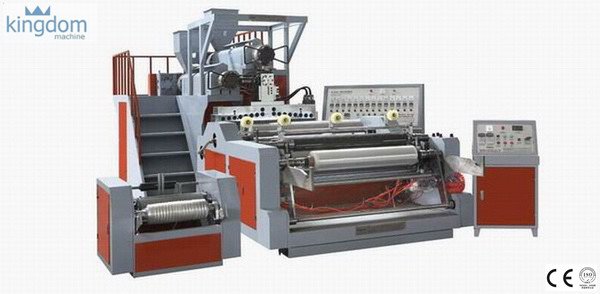

1500mm width three layers stretch film machine
Screw diameter(mm)  Dia.75mm, 65x2 mm
L/D ratio of screw (L/D) 30 : 1
Width of die head (mm) 1800 (mm)
Width of finished products(mm) 1500 (500 ×3 rolls)
Thickness of finished products (mm) 0.008-0.05 (mm)
Structure of film layers Three layers
Max output (kg/h) 150 (kg/h)
Linear speed of machinery (m/min) 50-100 (m/min)
Traction  power (kw) 2.2 ×2 (kw)
Total power (KW) 150 kw
Overall dimensions (L*W*H) 8000*4600*3500mm
Weight (T)(About) 5T
